These are wireframe sketches intended to show the breadth of functionality for an in-store kiosk for customizing HTC hardware and software at the point of purchase.

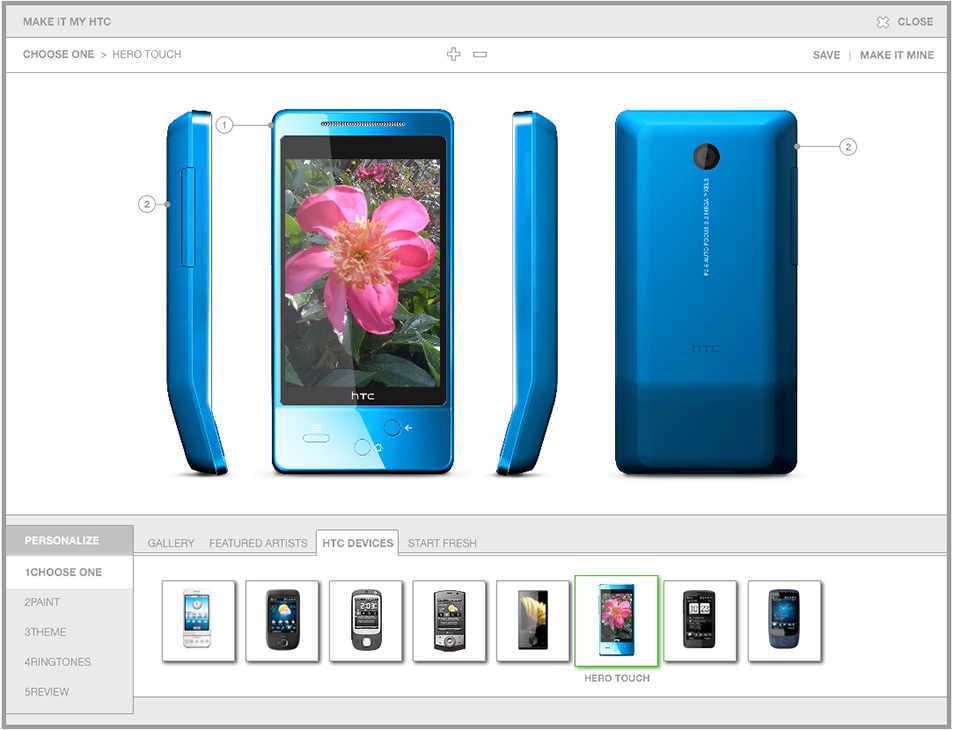

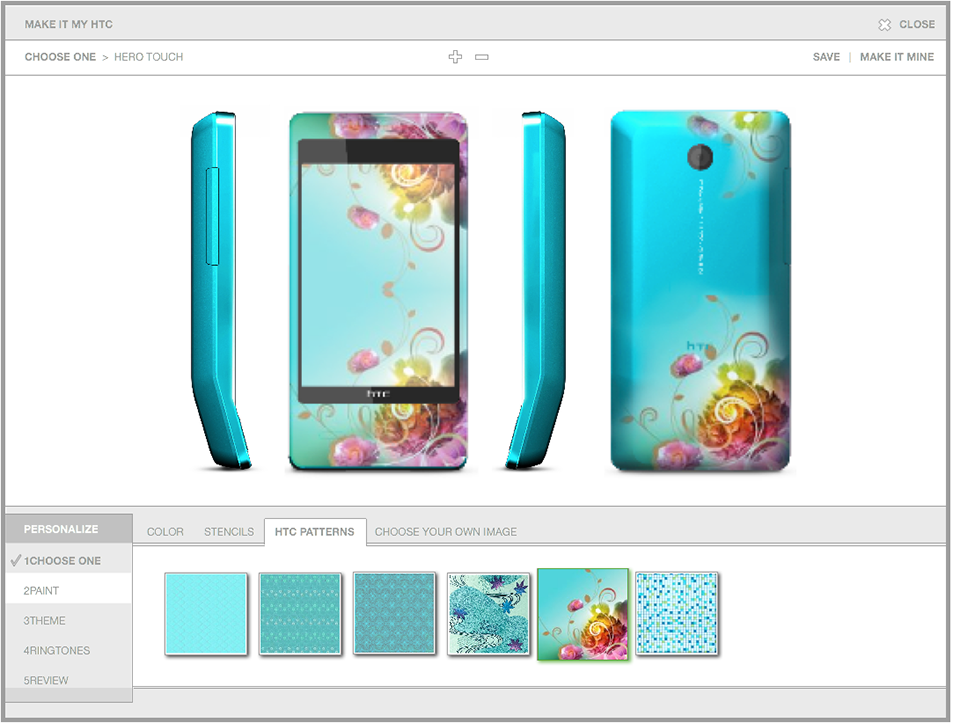

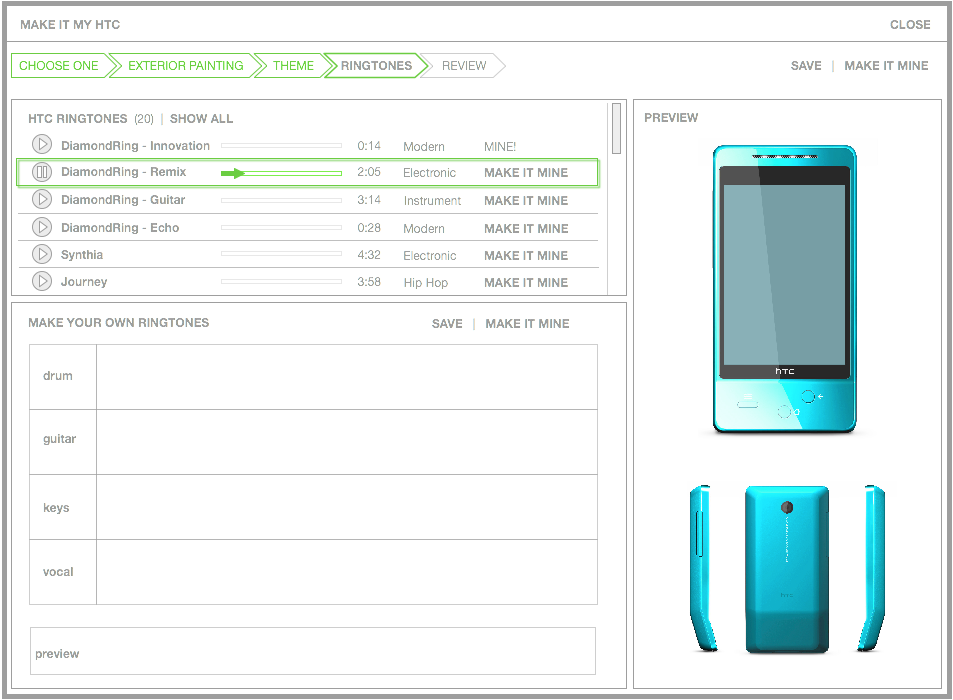

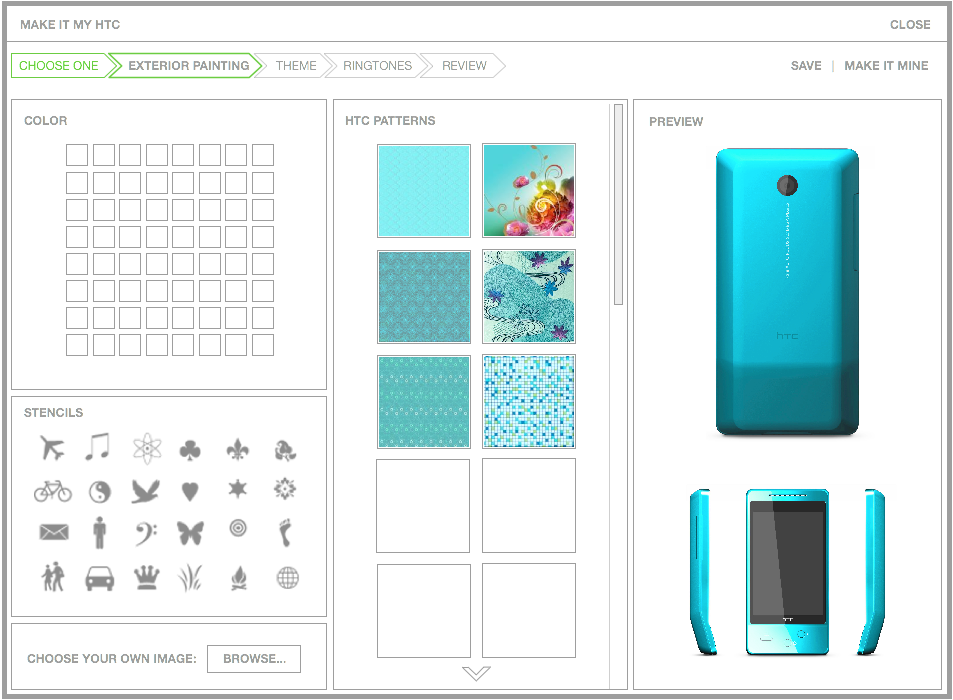

These unfinished sketches were provided as potential layout and interaction model options before finalizing the UI: screens 1 & 2) a version with tabs showing the customizable options at the bottom of the screen, which allows the customer to choose the available options in any order, and screens 3-7) a more directed, step-by-step version of all options available within multiple scrolling regions on the touch screen.
A map of the process and options is also included to show considerations during this beginning phase of the design.
Medium: OmniGraffle, Photoshop
Year: September 2008
Role: Interaction Design
